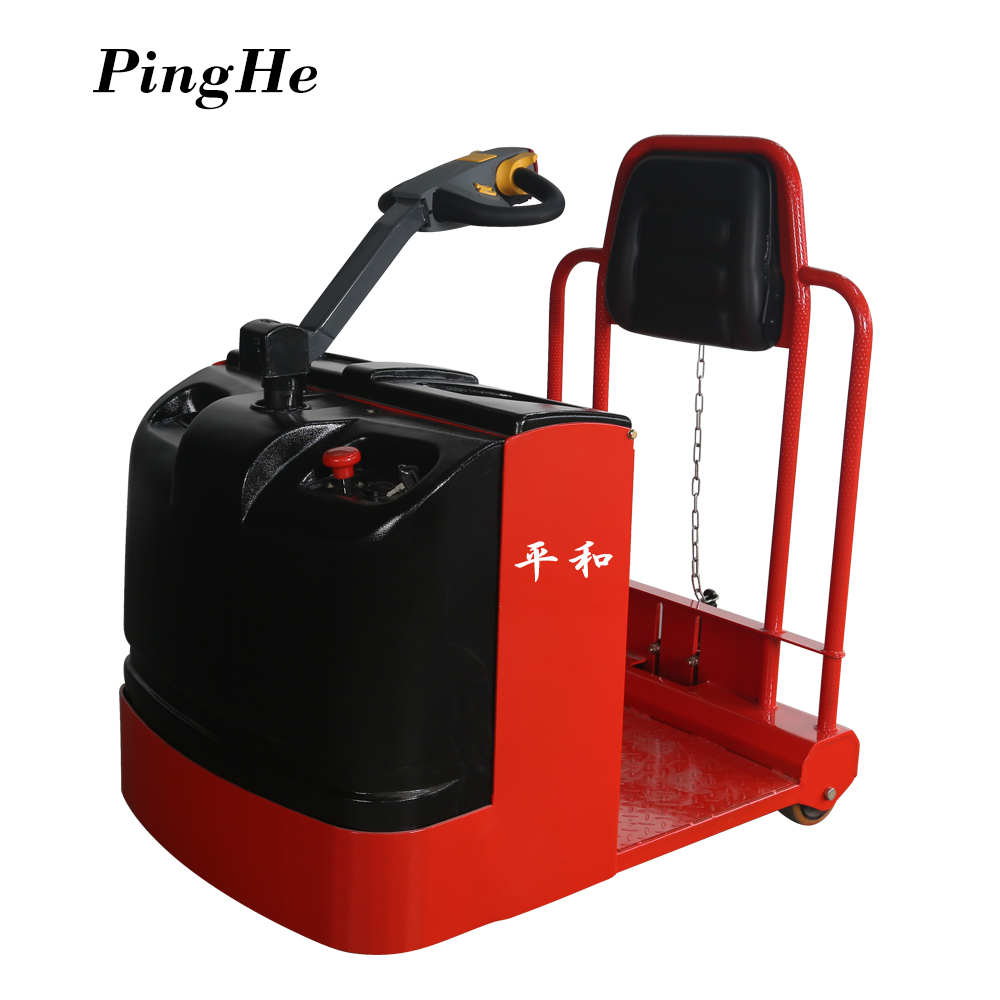

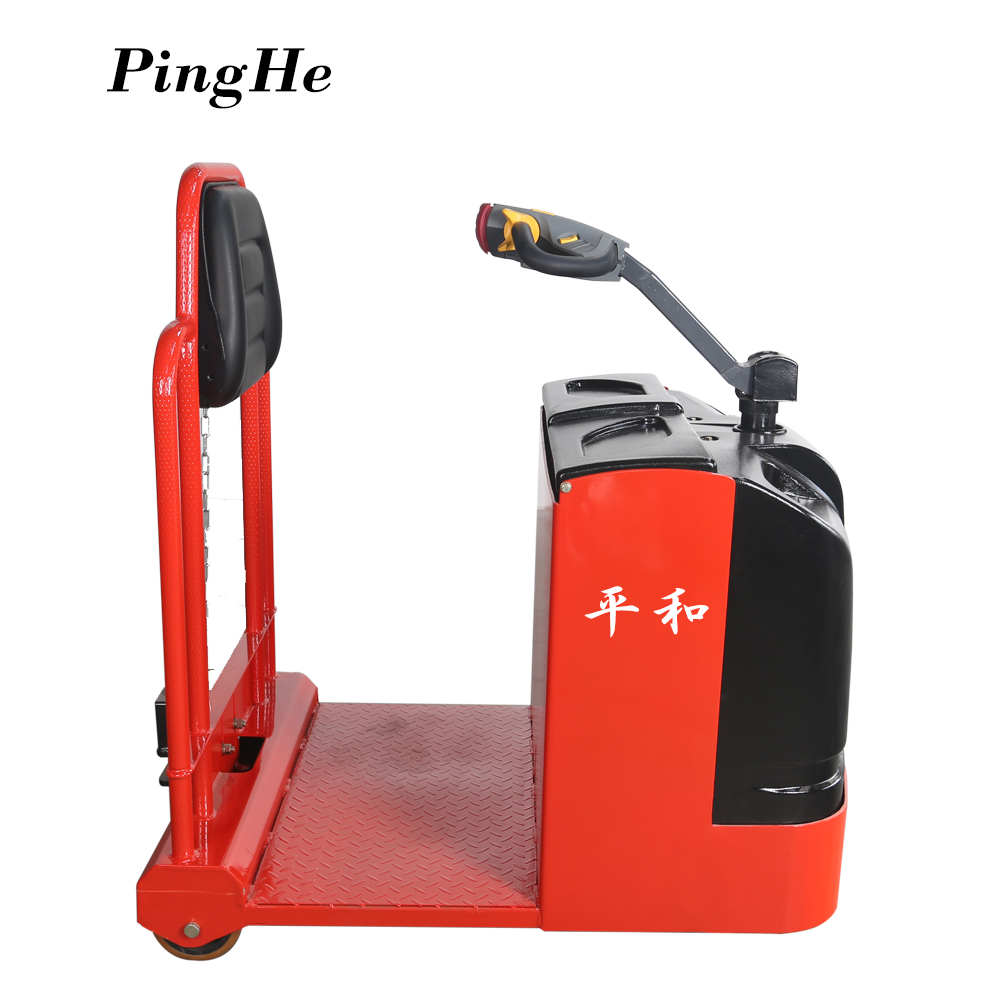

FG系列 电动牵引车
Electric tow tractor


1 名称                       Description 电动牵引车
2 型号                           Model FG20 FG30 FG40 FG60
3 最大牵引重量Kg           Tow capacity     2000 3000 4000 6000
4 轮胎配置                   Wheel type 聚胺脂 Polyurethane 橡胶胎Rubber
6 整车高度mm             Overall height    1435 1270 1350 1320
7 全长mm                 Overall length    1230 1300 1925 2210
8 全宽mm                  Overall width    600 850 900 1070
9 最大行走速度Km/h Max. walking speeds   4~6.7 4/6.7 7/5 10.5/8.8
10 总重Kg        Total weight( with battery)    ~600 ~550 ~870 ~1885
11 前轮mm               Driving wheel   Φ215*75 Φ215*75*1 Φ267*127 15*4.5-8
12 后轮mm                   Front wheel   Φ100*40 Φ150*60*2 Φ305*140 6.50-10
13 蓄电池  电压/容量  V/Ah        Battery 24/210 24/210 48/280 48/480
14 充电机V/A                    Charger   24/30 24/30 48/30 48/50
15 驱动马达Kw              Driving motor   1.5 AC1.5/DC1.2 3.0 5.0
●TG30可选配AC交流驱动电机,进口蓄电池。OPTIONS: AC motor.

平和2-6吨全电动牵引车

电动牵引车

平和2-6吨全电动牵引车,可根据客户要求非标定制。...
